Steam Jet Heater

← Home • Products • Steam Jet Nozzle ↓ Summary • Design Example • Applications • Technical Data • Downloads

Summary:

Steam jet heaters serve for low-noise heating of water by injection of steam. The nozzle is installed vertically within a water bath. Steam flows out of the nozzle and into the water in horizontal direction, through a condensation section where thorough mixing with water and condensation occurs. This results in a quick heating of the water while minimizing any steam hammer effects.

The steam mass flow through the nozzle depends mainly upon the upstream steam pressure, and can accordingly be adjusted by steam-side control valves.

↑ top of page

Design Example:

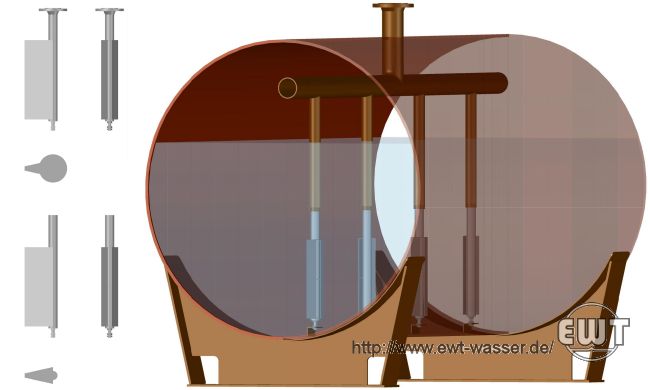

Steam jet heaters for low-noise heating of water, installed within a horizontal vessel.

↑ top of page

Applications:

Deaeration of →boiler feed water: Injection of heating steam into the →boiler feed water tank for scrubbing purposes.
Condensate recovery: Injection of high-pressure condensate into either a →condensate tank or the boiler feed water tank.
Steam accumulator: Injection of heating steam for pressure and temperature control.
Desuperheating: Injection of superheated steam into a water bath desuperheater.
Water heating: Injection of heating steam into a warm water storage tank.

↑ top of page

Technical Data:

nominal diameter		DN 15	DN 20	DN 25	DN 32	DN 40	DN 50	DN 65
flow coefficient K_VS		2 m³/h	3 m³/h	4 m³/h	6 m³/h	7 m³/h	13 m³/h	17 m³/h
allowable temperature		≤ 400 °C
allowable differential pressure		≤ 24 bar
Pressure Equipment Directive		The product is not a pressure equipment as defined by directives 97/23/EC and 2014/68/EU.
connection type	type A	threaded male tapered, R, EN 10226-1
connection type	type D	welding neck flange, PN 40, EN 1092-1
installed height		440 mm	440 mm	585 mm	610 mm	640 mm	800 mm	910 mm
submerged depth		≥ 270 mm	≥ 270 mm	≥ 390 mm	≥ 440 mm	≥ 535 mm	≥ 740 mm	≥ 830 mm
material	welding neck flange	stainless steel 1.4571, EN 10222-5
	pipe	stainless steel 1.4571, EN 10217-7
	baffle	stainless steel 1.4301, EN 10028-7
mass, approx.	type A	1.1 kg	1.1 kg	1.9 kg	2.9 kg	3.5 kg	6.7 kg	8.8 kg
mass, approx.	type D	2.0 kg	2.1 kg	3.2 kg	4.8 kg	5.6 kg	9.4 kg	12 kg
mass flow, approx. – saturated steam – inlet pressure, abs. 2 bar	Δp = 0.2 bar	28 kg/h	43 kg/h	57 kg/h	85 kg/h	100 kg/h	185 kg/h	242 kg/h
	Δp = 0.5 bar	41 kg/h	62 kg/h	82 kg/h	123 kg/h	144 kg/h	267 kg/h	349 kg/h
	Δp = 1.0 bar	47 kg/h	71 kg/h	94 kg/h	142 kg/h	165 kg/h	307 kg/h	401 kg/h
mass flow, approx. – saturated steam – inlet pressure, abs. 5 bar	Δp = 0.2 bar	45 kg/h	69 kg/h	90 kg/h	136 kg/h	158 kg/h	294 kg/h	384 kg/h
	Δp = 0.5 bar	69 kg/h	104 kg/h	138 kg/h	207 kg/h	242 kg/h	449 kg/h	587 kg/h
	Δp = 1.0 bar	92 kg/h	138 kg/h	184 kg/h	276 kg/h	322 kg/h	597 kg/h	781 kg/h
	Δp = 2.5 bar	114 kg/h	171 kg/h	228 kg/h	342 kg/h	399 kg/h	742 kg/h	970 kg/h
mass flow, approx. – saturated steam – inlet pressure, abs. 10 bar	Δp = 0.2 bar	63 kg/h	95 kg/h	127 kg/h	190 kg/h	222 kg/h	412 kg/h	539 kg/h
	Δp = 0.5 bar	99 kg/h	148 kg/h	197 kg/h	296 kg/h	345 kg/h	641 kg/h	839 kg/h
	Δp = 1.0 bar	135 kg/h	203 kg/h	271 kg/h	406 kg/h	474 kg/h	881 kg/h	1152 kg/h
	Δp = 2.5 bar	194 kg/h	292 kg/h	389 kg/h	583 kg/h	680 kg/h	1263 kg/h	1652 kg/h
	Δp = 5.0 bar	222 kg/h	333 kg/h	445 kg/h	667 kg/h	778 kg/h	1445 kg/h	1890 kg/h
mass flow, approx. – saturated steam – inlet pressure, abs. 20 bar	Δp = 0.2 bar	89 kg/h	134 kg/h	178 kg/h	267 kg/h	312 kg/h	579 kg/h	757 kg/h
	Δp = 0.5 bar	140 kg/h	209 kg/h	279 kg/h	419 kg/h	489 kg/h	908 kg/h	1187 kg/h
	Δp = 1.0 bar	195 kg/h	292 kg/h	389 kg/h	584 kg/h	681 kg/h	1265 kg/h	1654 kg/h
	Δp = 2.5 bar	294 kg/h	440 kg/h	587 kg/h	881 kg/h	1028 kg/h	1909 kg/h	2496 kg/h
	Δp = 5.0 bar	381 kg/h	572 kg/h	762 kg/h	1144 kg/h	1334 kg/h	2478 kg/h	3240 kg/h
	Δp = 10 bar	433 kg/h	650 kg/h	867 kg/h	1300 kg/h	1517 kg/h	2818 kg/h	3685 kg/h
mass flow, approx. – saturated steam – inlet pressure, abs. 40 bar	Δp = 0.2 bar	126 kg/h	190 kg/h	253 kg/h	379 kg/h	442 kg/h	821 kg/h	1074 kg/h
	Δp = 0.5 bar	199 kg/h	298 kg/h	398 kg/h	596 kg/h	696 kg/h	1292 kg/h	1690 kg/h
	Δp = 1.0 bar	279 kg/h	418 kg/h	558 kg/h	837 kg/h	976 kg/h	1813 kg/h	2371 kg/h
	Δp = 2.5 bar	430 kg/h	645 kg/h	860 kg/h	1291 kg/h	1506 kg/h	2796 kg/h	3657 kg/h
	Δp = 5.0 bar	583 kg/h	874 kg/h	1166 kg/h	1749 kg/h	2040 kg/h	3789 kg/h	4955 kg/h
	Δp = 10 bar	752 kg/h	1128 kg/h	1504 kg/h	2256 kg/h	2632 kg/h	4889 kg/h	6393 kg/h
	Δp = 20 bar	847 kg/h	1270 kg/h	1693 kg/h	2540 kg/h	2963 kg/h	5503 kg/h	7196 kg/h

↑ top of page

Downloads:

technical data sheet: steam jet heater

→further downloads
